Add and customize a cross-section plan

Level : Intermediate

Cross-section plans allow you to create annotated technical documents.

Add a cross-section plan

1. Access the 'Folder' step.

2. Click on the 'Add a cross-section view' button.

3. Position the cross-section plan camera (to adjust with movement and orientation tools).

4. Name your plan.

5. Configure the framing of the plan.

6. Return to the plans page.

11-06 Create a cross section (new)

Edit a cross-section plan

If you want to modify the information to appear on a cross-section plan, you can do so at any time. To do this, click on the thumbnail representing the plan you want to modify and make updates from the following three entry points:

  • Basic options

These options are accessible from the 'Plan' tab in the right-hand panel.

  • "Name" allows you to change the name of the cross-section plan.
  • "Move cross section" allows you to update the position and orientation of the cross-section.
  • "Dimensions" allows you to show or hide free or elevation dimensions.
  • Add Symbols

Similarly to the 'Plan details' step, you have the option to add symbols to your floor plans.

11-symbols in Folder
1. Search for the desired symbol, either through the search bar or in the various catalogs provided.

2. Select the thumbnail representing the desired symbol.

3. With a left click of the mouse, click on the location on the floor plan where you want to place your symbol (you can move it by holding down the left click on the symbol).

4. In the right column, you can (in the first tab) resize/rotate the symbol or (in the second tab) change its color.

11-06 Add symbol on section plan

11-général effet miroir💡 From the right column, you can apply a 'mirror effect' to your symbols to modify their axes of symmetry
(This will be useful for stairs, for example).

  •  Add and edit Annotations

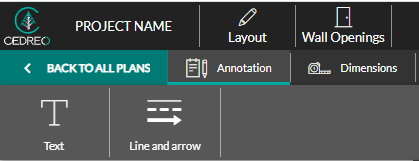

You have the ability to add and configure text as well as lines, arrows and rectangle directly on the plan using the 'Text' and 'Shapes' tools:

11-text in Folder 11-shapes in Folder

11-06 Add and edit text and line

  • Add and edit Dimensions

You can add both free dimensions and elevation dimensions to your plans. To do this, you can use the 'Dimensions' tool:

11-dimensions elevation section plan in Folder

Dimensions have a snapping system to simplify their insertion. A green dashed line indicates the reference elevation:

11-06 Add and edit dimensions (new)

Delete a cross-section plan

1. From the 'Folder' step, hover the mouse pointer over the plan to delete.

2. A red icon representing a trash can appears.

3. Click on it and confirm the deletion.
11-06 delete cross section (new)
