Add and customize a site plan

• Add a site plan
• Edit a site plan
• Delete a site plan

Add a site plan

1. Access the 'Folder' step.

2. Click on the 'Add a site plan' button.

3. Enter a site plan name.

4. Edit the site plan information
(See 'Basic Options' in Edit a Site Plan)

5. Return to the plans page.

Edit a site plan

If you want to modify the information to appear on a site plan, you can do so at any time. To do this, click on the thumbnail representing the plan you want to modify and make updates from the following three entry points:

• Basic options

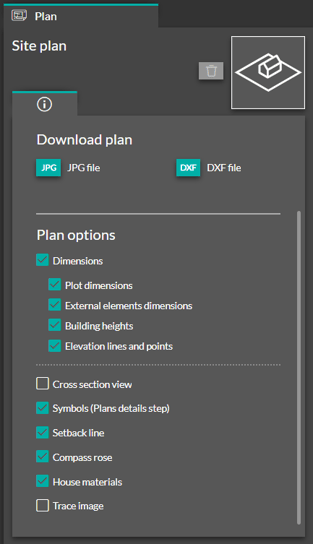

These options are accessible from the "Plan" tab in the right-hand panel.

'Dimensions' allows you to show or hide all the dimensions on the plan. By default, there are no dimensions, only free dimensions are affected. 'Symbols (Plans details step)' allows you to show or hide symbols added in the "Plans details" step. 'House materials' allows you to show or hide the exterior finishes applied to the building. 'Trace image' allows you to show or hide the trace image layer. 'Compass rose' allows you to show or hide the compass rose on the plan. 'Cross section view' allows you to show or hide the lines representing the location of the cross-section plans generated for the project.

• Add Symbols

Similarly to the 'Plan details' step, you have the option to add symbols to your floor plans.

1. Search for the desired symbol, either through the search bar or in the various catalogs provided.

2. Select the thumbnail representing the desired symbol.

3. With a left click of the mouse, click on the location on the floor plan where you want to place your symbol (you can move it by holding down the left click on the symbol).

4. In the right column, you can (in the first tab) resize/rotate the symbol or (in the second tab) change its color.

💡 From the right column, you can apply a 'mirror effect' to your symbols to modify their axes of symmetry
(This will be useful for stairs, for example).

• Add and edit Text and Shapes

You have the ability to add and configure text, lines, arrows and rectangle directly on the plan using the 'Text' and 'Shapes' tools:

• Add and edit dimensions

You can add free dimensions to your plans. To do this, you can use the 'Dimensions' tool.

Delete a site plan

1. From the 'Folder' step, hover the mouse pointer over the plan to delete.

2. A red icon representing a trash can appears.

3. Click on it and confirm the deletion.
