      Editer une pièce

      INITIAL - Facilitez la lecture de votre plan et de votre tableau de surface en éditant et personnalisant vos pièces.

      Type a room

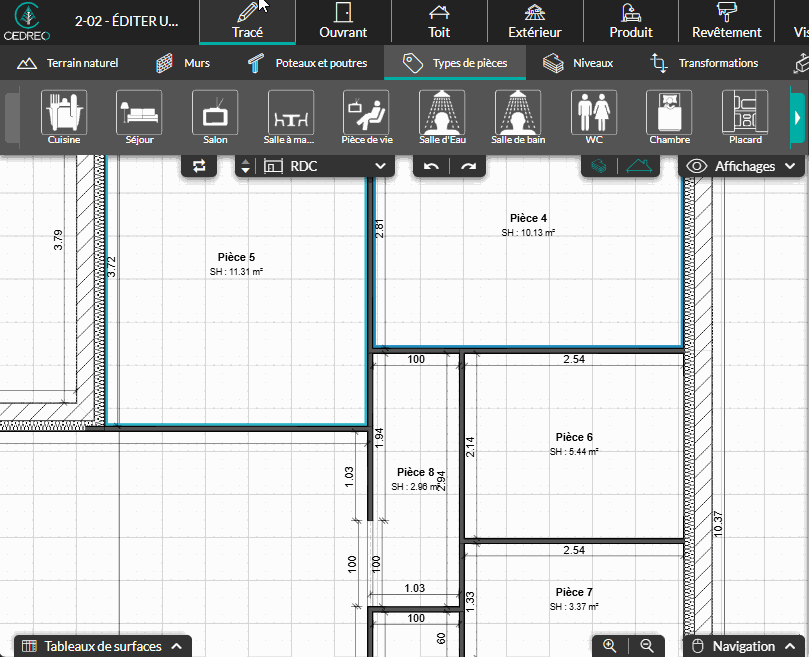

      1. In the step 'Layout' click on the 'Room type' tab
      2. Select the thumbnail matching your room, then click again on the area representing the room.

      Test edit

      ❗Depending on the room type, some room options come preconfigured. For example, the 'Annex area' checkbox is automatically selected for a room classified as 'Garage'.



      Edit a room

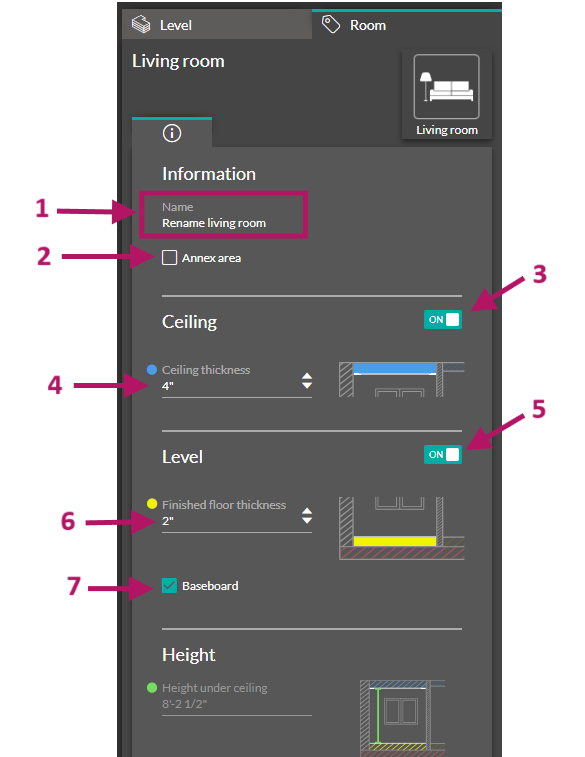

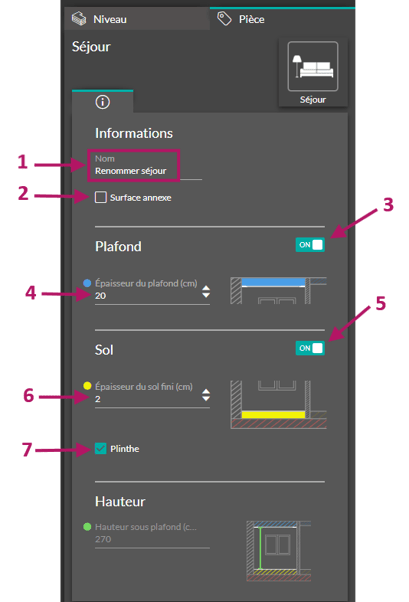

      Select the room you want to edit. After selecting the room you typed, the 'Information' panel on the right will appear, enabling you to modify the room's name.

      2-05 modify a room 040825

      1. Edit its name.

      2. Define it as an annex area.

      3. Deactivate the ceiling with the ON/OFF button.

      4. Edit the ceiling thickness.

      5. Deactivate the floor with the ON/OFF button.

      6. Edit the finished floor thichness.

      7. Add or remove the baseboard.

      ❗The ceiling thickness and finished floor thickness affect the 'Height under ceiling', which cannot be edited directly. Check out this tutorial to edit the heights of your level.



      Rooms : Special cases

      • Rooms  excluded from surfaces ('Hopper' / 'Empty') > These rooms no longer appear in the surface table (no apparent area)

        2-05 Hopper specifity
      • Rooms in Annex Areas (e.g., 'Technical Room') > They are not counted in the 'Display LA / TIA' option and do not represent the finished roof thickness in section plans.

      2-05 Technical room specifity
