INTERMEDIATE - Modenature, two-tone, color band? Use the zones to create them
Position a zone

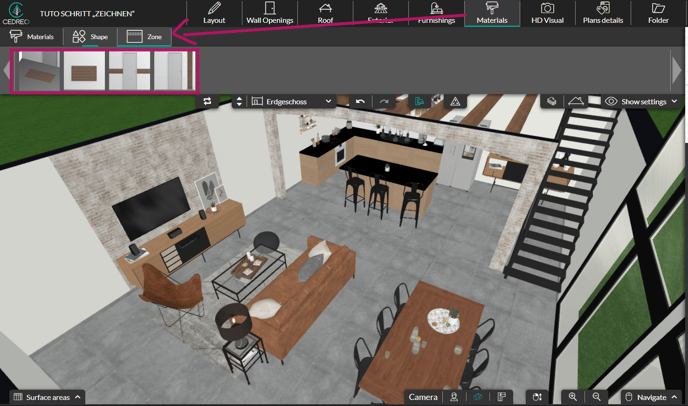

1 . Go to the 'Materials' step, then click on 'Zone' in the sub-menu.
2 . Select the type of zone according to your needs.
3 . Click on the area and position it where desired
4 . In the customization panel on the right, you can adjust its dimensions.
5 . You can then apply any materials on it
The different types of zone
There are 4 types of zones :
- Floor area
It will delimit an area on the ground (to make an italian shower for example).
- Wall area
It delimits areas on a wall. They are automatically cut out around the joinery.
You can adjust its height and width on the right.
- Horizontal area
They can be used for a banner between two openings or for window frames.
It can also be placed on a facade, you can adjust its height on the right.
- Vertical area
It is placed vertically on a whole floor, you can change its width on the right.
In a single story house, put a zone on the ground floor and the first floor.
